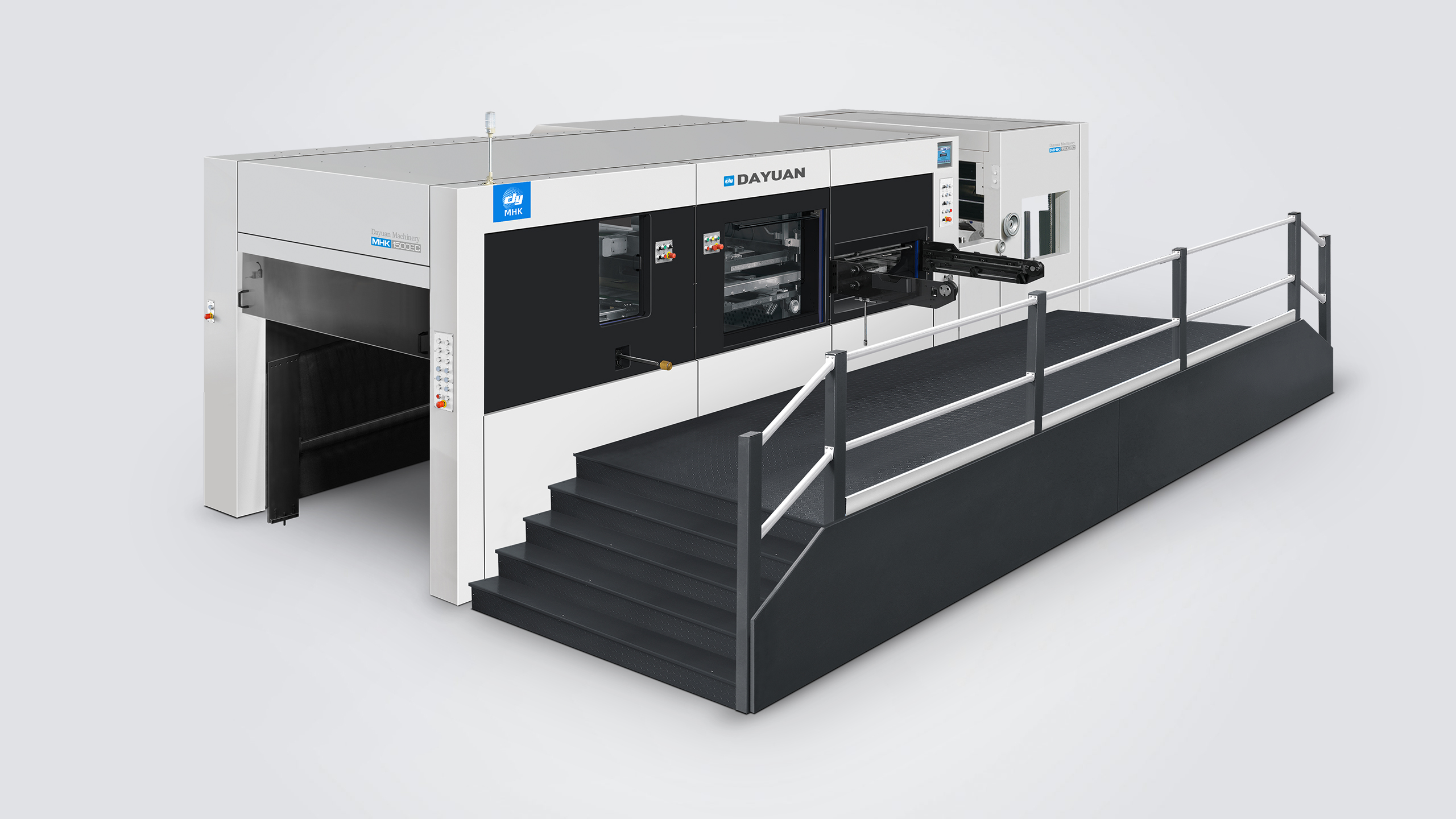

MHK 1300EC/1500EC Automatic Die Cutting Machine With Stripping
Did you like this product? Add to favorites now and follow the product.
(+86) 158 9968 3398 WhatsApp Chat
Product Description
Introduction to the MHK 1300EC/1500EC Automatic Die Cutting Machine with Stripping
The MHK 1300EC/1500EC Automatic Die Cutting Machine with Stripping is a state-of-the-art solution designed to enhance precision and efficiency in the packaging and printing industries. This advanced machine integrates die cutting and stripping functionalities, ensuring superior performance and high productivity.
Key Features
High Precision and Accuracy
The MHK 1300EC/1500EC delivers millimeter-perfect die cutting, making it ideal for applications requiring detailed and exact specifications. This high level of precision minimizes material waste and ensures superior product quality, which is essential for maintaining high production standards.
Integrated Stripping Function
A standout feature of the MHK 1300EC/1500EC is its integrated stripping functionality. This system automatically removes waste material from the finished product, ensuring clean and precise edges. The stripping function reduces manual labor and accelerates the production process, leading to significant labor cost savings.
High-Speed Performance
Designed for high-speed operations, the MHK 1300EC/1500EC significantly boosts productivity. Its robust construction and advanced technology allow it to handle large-scale production efficiently, meeting tight deadlines without compromising accuracy.
User-Friendly Interface
The machine features an intuitive touch-screen display that provides easy setup and real-time monitoring, minimizing the learning curve for operators and ensuring smooth operation.
Benefits
- Enhanced Efficiency: The combination of high-speed operations and integrated stripping function streamlines the workflow, reducing downtime and labor costs.
- Improved Safety: Equipped with emergency stop buttons and protective guards, the machine ensures a safe working environment, adhering to the highest industry standards.
- Versatility: Suitable for a variety of applications, including packaging, labels, signage, and custom print materials. Its precision and efficiency make it a valuable asset for businesses looking to optimize their production processes and meet high-volume demands.
Applications
The MHK 1300EC/1500EC is perfect for various applications, including packaging, labels, signage, and custom print materials. Its versatility and precision make it a valuable asset for businesses aiming to optimize their production processes and meet high-volume demands.
Conclusion
The MHK 1300EC/1500EC Automatic Die Cutting Machine with Stripping sets a new industry standard with its combination of precision, speed, and efficiency. Designed to meet the demands of modern manufacturing, this machine helps businesses increase productivity while maintaining high quality and safety standards.
Features Introduced
Feeder
Sheet transmission and alignment section
Selectable left and right side push lays to ensure accurate alignment.
Advanced non-stop adjustment of feeding timing, reduce down time.
Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.
Die cutting section
Die cutting station safety door and pneumatic die chase safety locking system.
Air cushion underneath the cutting plate for easy sliding through.
Main drive adopts high quality precision worm gear and toggle system.
New technology of driving index with large motion angle to allow gripper bar gentle start and stop, less and smaller nicks required to achieve higher productivity. Equipped with overloading protection torque limit clutch.
Cutting pressure fine adjustment wheel with position indicate gauge.
Stripping section
Stationary middle stripping board, coupled with zero jerk, smooth upper frame motion curve with extra punch at the moment of impact to obtain cleaner waste removal.
Gripper bar register block at outlets of Stripping Station ensures the accuracy of stripping.
Center line system for quick stripping tool set up and change over, compatible with centerline.
Front edge waste removal system removes and transfers waste edge outside the machine via conveyor belt.
Gripper edge waste removal device
Gripper edge stripping and removing system with conveyor belt to remove the gripper edge waste sideways to the drive side.
Paper counting & collecting section(Optional)
Escalator delivery fork cooperate with non-stop air cylinder for neat and positive conveying to belt table. Bundle Delivery table is ready for further connection with Breaker for inline operation (to be required at order).
Electrical batch counter as standard.
Spring loaded adjustable chain tensioner for maintaining constant tension thus reducing stress on chains and producing smooth gripper bar movement.
Auto Non-stop Collecting Device(Optional)
Germany vaccum pump
Germany Becker oil free blower and vacuum pump.
Auto lubrication system
Adopt concentrated auto lubrication system to make sure the driven parts working better.
Machine Parameters
| Model | MHK-1500EC |
|---|---|
| Maximum Sheet Size | 1500×1100mm |
| Minimum Sheet Size | 480×480mm |
| Maximum Cutting Size | 1480×1080mm |
| Minimum Width of Double Cuts | 12mm |
| Minimum Gripper Margin | 6-12mm |
| Cutting Rule Height | 23.8mm |
| Inner Chase Size | 1520×1130mm |
| Stock Range | E, B, C, A and AB corrugated paper |
| Max.working Speed | 6000s/h |
| Max.die Cutting Force | 400T |
| Mobile Lower Platen Adjusting Range | ±1.5mm |
| Max. Delivery Pile Height(Curtain type paper collection) | 1600mm (With wooden pallet) |
| Machine Dimensions(Curtain type paper collection) | 10490×5240×2800mm(L×W×H) (W: platform included) |
| Max. Delivery Pile Height(Stacking type paper collection) | Stacking type paper receiving (optional) |
| Machine Dimensions(Stacking type paper collection) | 11782×5240×2397mm(L×W×H)(W: platform included) |
| Net Weight of Machine | 23T |
| Main Motor Wattage | 15kw |
| Full Load Wattage | 30kw |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |
| NOTE | Features that are the same in the table are written as one. |
