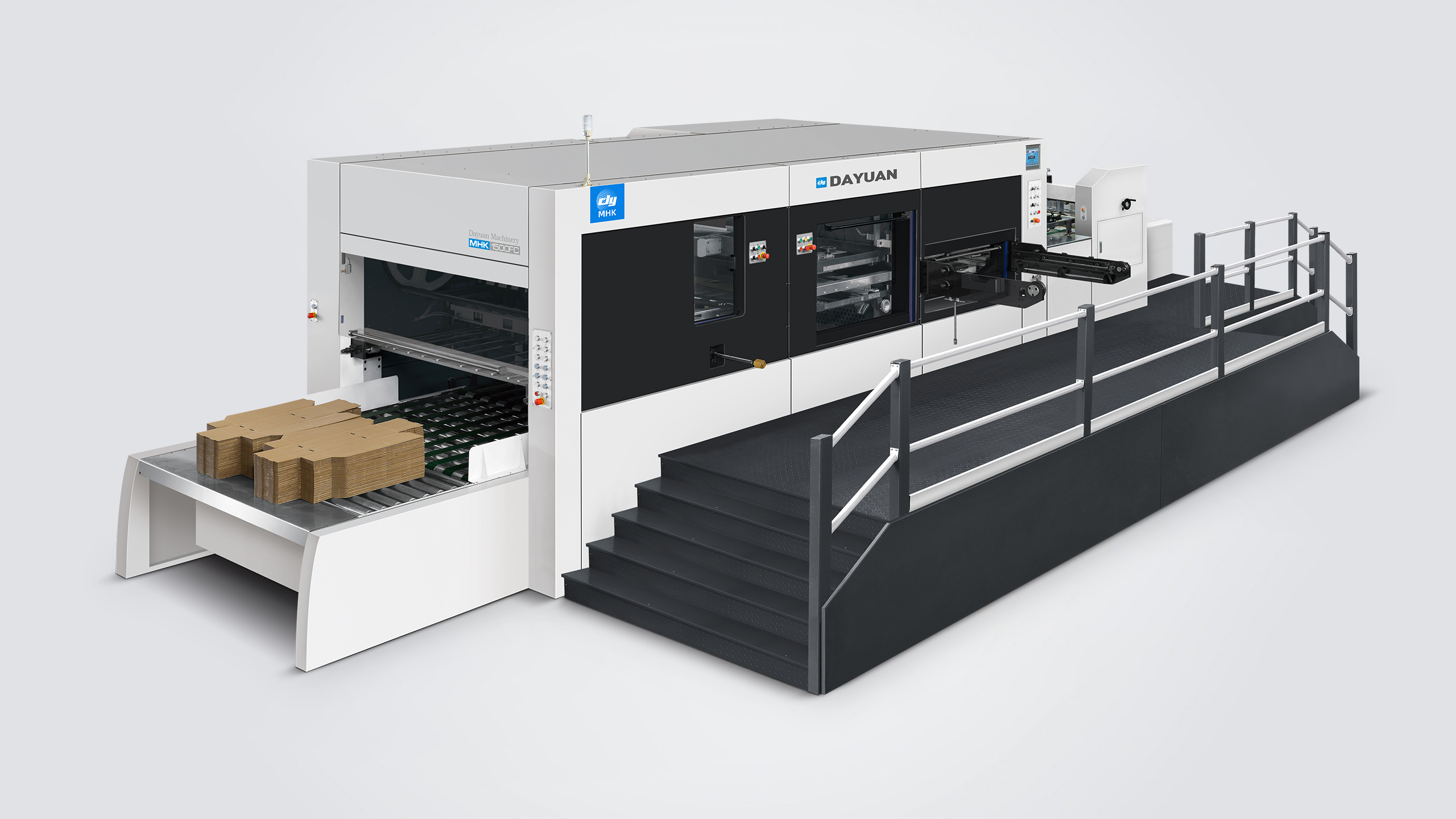

MHK 1300FC/1500FC Automatic Die Cutting & Creasing Machine with Stripping (Lead Edge Feeder)
Did you like this product? Add to favorites now and follow the product.
(+86) 158 9968 3398 WhatsApp Chat
Product Description
Introduction to the MHK 1300FC/1500FC Automatic Die Cutting & Creasing Machine with Stripping (Lead Edge Feeder)
The MHK 1300FC/1500FC Automatic Die Cutting & Creasing Machine with Stripping (Lead Edge Feeder) is an advanced solution designed to enhance precision and efficiency in the packaging and printing industries. This state-of-the-art machine integrates die cutting, creasing, and stripping functionalities with a lead edge feeder, ensuring superior performance and high productivity.
Key Features
High Precision and Accuracy
The MHK 1300FC/1500FC delivers millimeter-perfect die cutting and creasing, making it ideal for applications requiring detailed and exact specifications. This high level of precision reduces material waste and ensures superior product quality, which is essential for maintaining high production standards.
Lead Edge Feeder System
The integrated lead edge feeder system ensures accurate and consistent feeding of materials, reducing the likelihood of misfeeds and enhancing the overall reliability and efficiency of the production process. This system is crucial for maintaining high-speed operations and ensuring reliable performance.
Integrated Stripping Function
A standout feature of the MHK 1300FC/1500FC is its integrated stripping functionality. This system automatically removes waste material from the finished product, ensuring clean and precise edges. The stripping function reduces manual labor and speeds up the production process, leading to significant labor cost savings.
High-Speed Performance
Designed for high-speed operations, the MHK 1300FC/1500FC significantly boosts productivity. Its robust construction and advanced technology allow it to handle large-scale production efficiently, meeting tight deadlines without compromising accuracy.
Benefits
- Enhanced Efficiency: The combination of high-speed operations, lead edge feeder system, and integrated stripping function streamlines the workflow, reducing downtime and labor costs.
- User-Friendly Interface: An intuitive touch-screen display provides easy setup and real-time monitoring, minimizing the learning curve for operators and ensuring smooth operation.
- Safety Features: Equipped with emergency stop buttons and protective guards, the machine ensures a safe working environment, adhering to the highest industry standards.
Applications
The MHK 1300FC/1500FC is perfect for a variety of applications, including packaging, labels, signage, and custom print materials. Its versatility, precision, and efficiency make it a valuable asset for businesses looking to optimize their production processes and meet high-volume demands.
Conclusion
The MHK 1300FC/1500FC Automatic Die Cutting & Creasing Machine with Stripping (Lead Edge Feeder) sets a new standard in the industry with its combination of precision, speed, and efficiency. Designed to meet the demands of modern manufacturing, this machine helps businesses increase productivity while maintaining high quality and safety standards.
Drawing
Features Introduced
Lead edge feeder
Top gear and precise Lead Edge Feeder design, allowed consistent feeding with various quality corrugated board.
New technology polyurethane wheel surface with grid lifter and air cushion ensure smooth feeding and accurate alignment even warped board.
Fine vacuum suction adjustment through inverter adapts to wide range stock from F flute to double wall corrugate.
Sheet transmission and alignment section
Selectable left and right side push lays to ensure accurate alignment.
Advanced non-stop adjustment of feeding timing, reduce down time.
Front gauge non-stop back and forth adjustable to accommodate variation in gripper margin.
Die cutting section
Die cutting station safety door and pneumatic die chase safety locking system.
Air cushion underneath the cutting plate for easy sliding through.
Main drive adopts high quality precision worm gear and toggle system.
New technology of driving index with large motion angle to allow gripper bar gentle start and stop, less and smaller nicks required to achieve higher productivity. Equipped with overloading protection torque limit clutch.
Cutting pressure fine adjustment wheel with position indicate gauge.
Stripping section
Stationary middle stripping board, coupled with zero jerk, smooth upper frame motion curve with extra punch at the moment of impact to obtain cleaner waste removal.
Gripper bar register block at outlets of Stripping Station ensures the accuracy of stripping.
Center line system for quick stripping tool set up and change over, compatible with centerline.
Front edge waste removal system removes and transfers waste edge outside the machine via conveyor belt.
Gripper edge waste removal device
Gripper edge stripping and removing system with conveyor belt to remove the gripper edge waste sideways to the drive side.
Paper counting & collecting section(Optional)
Escalator delivery fork cooperate with non-stop air cylinder for neat and positive conveying to belt table. Bundle Delivery table is ready for further connection with Breaker for inline operation (to be required at order).
Electrical batch counter as standard.
Spring loaded adjustable chain tensioner for maintaining constant tension thus reducing stress on chains and producing smooth gripper bar movement.
Auto Non-stop Collecting Device(Optional)
Auto lubrication system
Adopt concentrated auto lubrication system to make sure the driven parts working better.
Machine Parameters
| Model | MHK-1500FC |
|---|---|
| Maximum Sheet Size | 1500×1100mm |
| Minimum Sheet Size | 480×480mm |
| Maximum Cutting Size | 1480×1080mm |
| Minimum Width of Double Cuts | 12mm |
| Minimum Gripper Margin | 6-12mm |
| Cutting Rule Height | 23.8mm |
| Inner Chase Size | 1510×1120mm |
| Stock Range | ≤8.5mm corrugated paper, E, B, C, A and AB corrugated paper |
| Max.working Speed | 6000s/h |
| Max.die Cutting Force | 400T |
| Mobile Lower Platen Adjusting Range | ±1.5mm |
| Max. Delivery Pile Height(Curtain type paper collection) | 1600mm(With wooden pallet) |
| Machine Dimensions(Curtain type paper collection) | 10490×5240×2800mm(L×W×H) (W: platform included) |
| Max. Delivery Pile Height(Stacking type paper collection) | Stacking type paper receiving (optional) |
| Machine Dimensions(Stacking type paper collection | 11782×5240×2397mm(L×W×H) (W: platform included) |
| Net Weight of Machine | 25T |
| Main Motor Wattage | 15kw |
| Full Load Wattage | 32kw |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |
| NOTE | Features that are the same in the table are written as one. |
