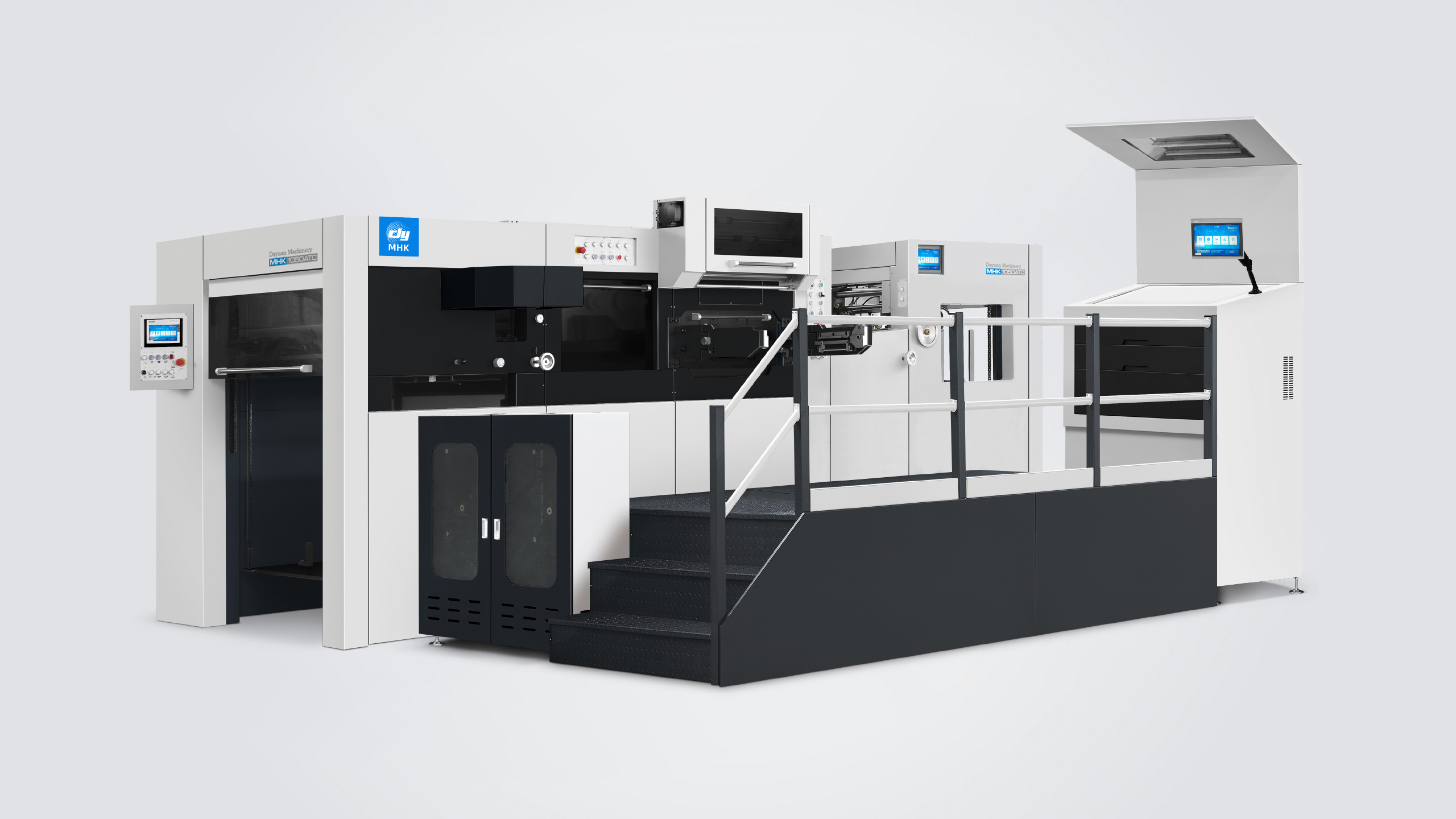

MHK 1050ATC Automatic Hot Foil Stamping & Die Cutting Machine with Stripping(Heavy duty)
Did you like this product? Add to favorites now and follow the product.
(+86) 158 9968 3398 WhatsApp Chat
Product Description

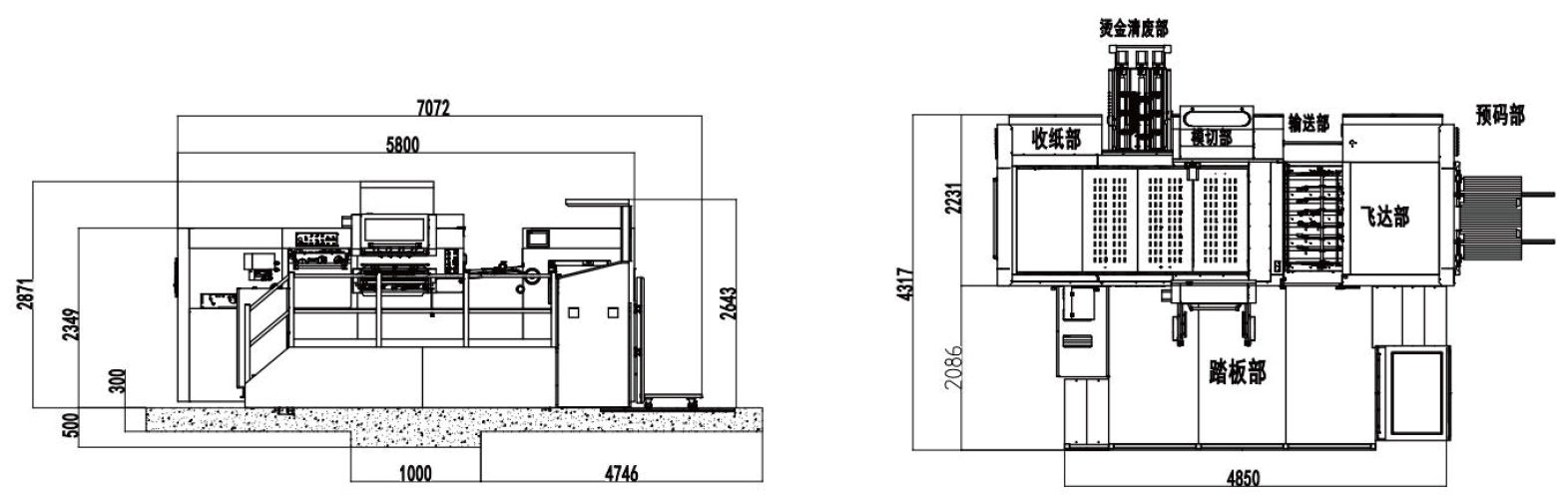

Drawing
MHK 1050ATC Automatic Hot Foil Stamping & Die Cutting Machine with Stripping (Heavy Duty): Superior Precision and Efficiency
The MHK 1050ATC Automatic Hot Foil Stamping & Die Cutting Machine with Stripping (Heavy Duty) is a high-performance solution designed to meet the demanding needs of modern manufacturing. Combining advanced hot foil stamping, precise die cutting, and efficient stripping, this robust machine delivers exceptional accuracy, speed, and reliability for a variety of industrial applications.
Key Features and Benefits
Advanced Hot Foil Stamping System
The MHK 1050ATC features an advanced hot foil stamping system that allows for intricate and high-quality foil designs on a wide range of materials. This capability enhances the visual appeal of products, making it ideal for luxury packaging, high-end labels, and decorative items.
Precision Die Cutting
Equipped with state-of-the-art die-cutting capabilities, the MHK 1050ATC ensures clean and precise cuts every time. This level of precision is essential for applications requiring detailed and flawless finishes, such as printing, packaging, and decorative industries.
Efficient Stripping System
The integrated stripping system automatically removes waste material, streamlining the production process and reducing the need for manual intervention. This feature increases efficiency, ensures a cleaner production environment, and enhances the overall quality of the finished products.
Heavy-Duty Construction
Constructed from high-quality materials, the MHK 1050ATC is designed for durability and stability. Its heavy-duty construction guarantees reliable performance under continuous operation, making it suitable for high-volume production tasks. This robust build ensures long-term durability and consistent performance.
High-Speed Operation
Designed for high-speed performance, the MHK 1050ATC significantly increases production throughput. This high-speed capability is crucial for large-scale production environments, ensuring the timely completion of substantial orders without compromising on quality.
User-Friendly Interface
The machine features an intuitive user interface, allowing operators to easily set up and adjust parameters, monitor the production process, and troubleshoot issues. This user-friendly design enhances productivity and reduces the learning curve for new operators.
Safety Features
Safety is a top priority with the MHK 1050ATC. The machine is equipped with multiple safety mechanisms, including emergency stop buttons, safety guards, and sensors that detect and respond to potential hazards, ensuring safe operation for all users.
Versatile Applications
The MHK 1050ATC is versatile and can handle a wide range of materials, including paper, cardboard, plastic sheets, and more. Its adaptability makes it an excellent choice for various industries, including:
- Printing: Delivering high-quality stamping and cutting for printed materials.
- Packaging: Providing precise die-cutting, foil stamping, and stripping for packaging materials.
- Labels and Tags: Creating detailed and attractive designs for labels and tags.
- Decorative Applications: Enhancing decorative items with intricate cuts and foil accents.
Enhanced Productivity
The integration of high-speed operation, hot foil stamping, die cutting, and stripping functions in a single machine enhances overall productivity. This combination reduces downtime, minimizes manual intervention, and ensures consistent quality across all production runs.
Technological Advancements
The MHK 1050ATC stands out with its advanced technological features, including servo precision control systems and automated functions. These innovations streamline the production process, reduce downtime, and enhance efficiency, making this machine a valuable asset for modern manufacturing operations.
Conclusion
The MHK 1050ATC Automatic Hot Foil Stamping & Die Cutting Machine with Stripping (Heavy Duty) offers a superior combination of precision, speed, and advanced automation. Its robust construction, user-friendly interface, and versatile applications make it an excellent investment for businesses looking to enhance their finishing processes. Whether for printing, packaging, or decorative applications, the MHK 1050ATC delivers exceptional performance and reliability, meeting the high demands of today’s industrial environments.
Partial Introduction
Feeder unit
Four pick up and four forward suck heads with angle adjustment to handle different kinds of materials.
Feeding table
Synchronizing device to adjust the sheet positioning to the front lay by hand during production,Sheet hold-down device (guiding the sheets to the front lays).
Hot stamping section
Heating base with 20 heating zone each temperature adjustable individually for efficient and accurate temperature control.
Foil advancing unit
Three sets of longitudinal foil advancing shafts and two sets of lateral foil advancing shafts are driven by servo motors individually programmable for short and long foil stepping.
Plate setting
5mm hardened stamping plate or 3.5mm + 1.5mm sandwich stamping plate on top of 15mm precision ground supporting base plate with +/-0.9mm micro adjustment in both running and cross direction for quick set up and easy make ready.
Torque limiter
Taiwan high precision intermittent segmentation ensure high positional precision for long time usage.
Taiwan torque limiter can accurately protect the artificial operation accident to guarantee the people and machine safety by its sensitive limit protection performance.
Main motor lubrication system
Taiwan made automatic oil pump cooling circulation system to ensure main motor lubrication of high speed for a long time.
Equipped with oil pressure gauge and with oil pressure alarm device.
Gripper edge waste removal device
Gripper edge stripping and removing system with conveyor belt to remove the gripper edge waste sideways to the drive side.
Delivery unit
Automatic delivery with non–stop curtain. This curtain moves into the delivery to catch the arriving sheets during the pile exchange.two blowers for paper collection can ensure neat collection of thin and thick papers.
Electrical unit
Adopts electrical components of world famous brands(MOELLER\OMRON) for better performance and in time and local after-sale-service and maintenance.
Germany vaccum pump
Germany Becker oil free blower and vacuum pump.
Auto lubrication system
Adopt concentrated auto lubrication system to make sure the driven parts working better.
Machine Parameters
| Model | MHK-1050ATC |
|---|---|
| Maximum Sheet Size | 1050×750mm |
| Minimum Sheet Size | 400×360mm |
| Maximum Cutting Size | 1040×720mm |
| Max. Hot Stamping Size | 1040×720mm |
| Max. Embossing Area | 1040×720mm |
| Minimum Gripper Margin | 9-17mm |
| Inner Chase Size | 1140×755mm |
| Stock Range | Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Common Stamping Accuracy | ≤±0.075mm |
| Hologram Positioning Stamping Accuracy | ≤±0.075mm(optional) |
| Embossing Accuracy | ≤±0.075mm |
| Max. Die Cutting Force | 600T |
| Max.working Speed | 7500s/h (Die cutting)；7500s/h (Hot stamping)；7500s/h (Hot pressing) |
| Max. Feeder Pile Height | 1600mm(With wooden pallet) |
| Max. Delivery Pile Height | 1400mm(With wooden pallet) |
| Max. Gold Foil Diameter | 250mm Horizontal，200mm Vertical |
| Electric-heated System | 20 temperature ranges, 40-180℃ is adjustable |
| Foil Width | 20-1020mm |
| Machine Dimensions | 7072×4317×2871mm(L×W×H) (L: paper prepared track included, W: platform included) |
| Net Weight of Machine | 20.5T |
| Main motor wattage | 15kw |
| Full Load Wattage | 56kw |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |
