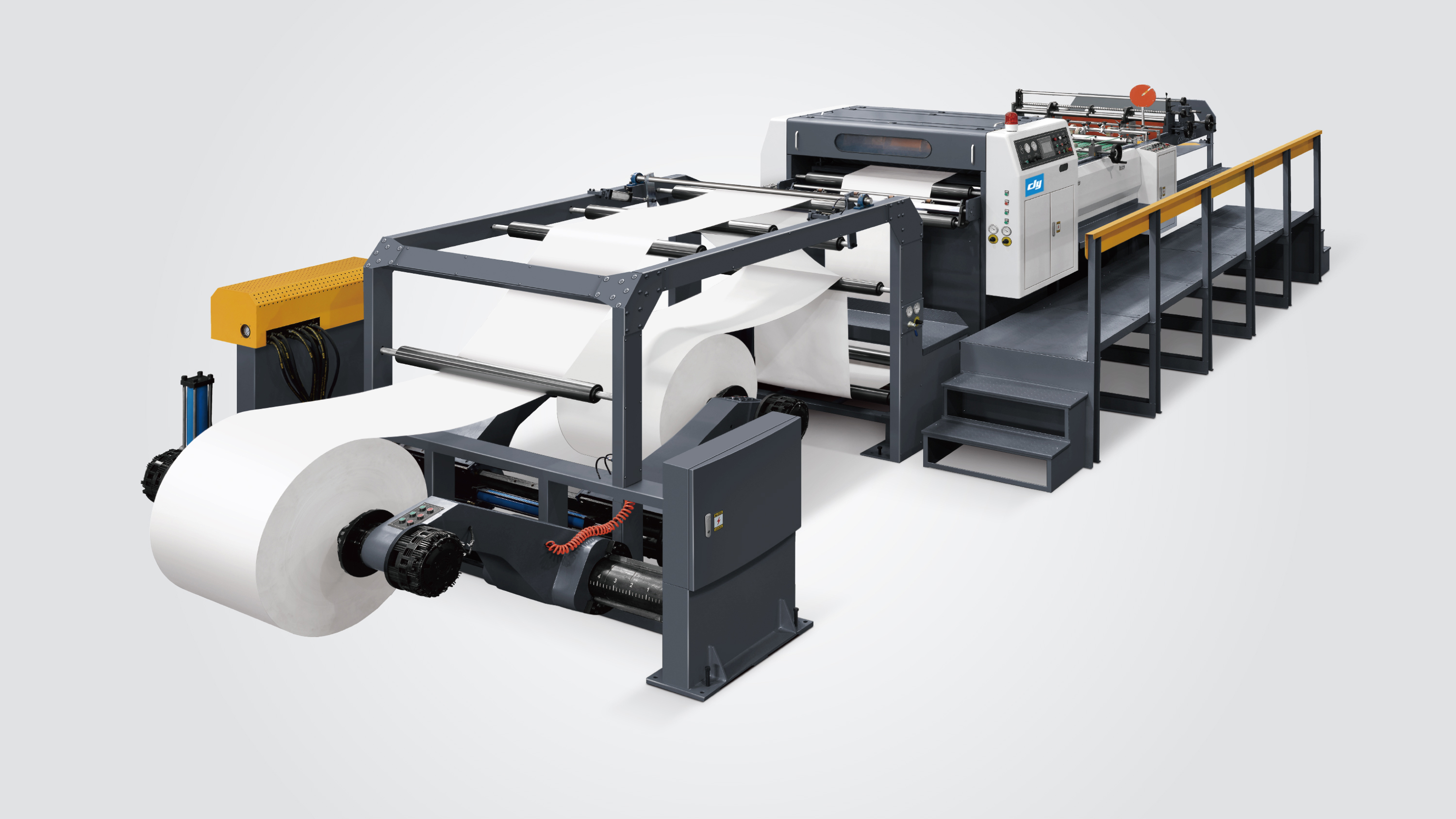

CM 1100A/1500A/1700A/1900A Servo Precision High Speed Sheet Cutter (Two Reel)

In Stock

In Stock
Have a Question? Ask a Specialist Only Whatsapp

(+86) 158 9968 3398 WhatsApp Chat

Low Prices

Price match guarantee

Guaranteed Fitment.

Always the correct part

In-House Experts.

We know our products

Easy Returns.

Quick & Hassle Free

Product Description



CM 1100A/1500A/1700A/1900A Servo Precision High Speed Sheet Cutter (Two Reel): Enhanced Efficiency and Precision for Industrial Cutting

The CM 1100A/1500A/1700A/1900A Servo Precision High Speed Sheet Cutter (Two Reel) is designed to address the high demands of various industries requiring precise and efficient sheet cutting. With advanced servo technology and a two-reel configuration, these machines offer unmatched accuracy, speed, and reliability, making them a valuable addition to any industrial cutting operation.

Key Features and Benefits

Advanced Servo Precision Technology

The CM series machines are equipped with state-of-the-art servo motors that provide precise control over the cutting process. This advanced technology ensures high-speed operations with exceptional accuracy, making these machines ideal for industries that require meticulous precision.

Two Reel Configuration

The two-reel configuration of the CM series enhances material handling efficiency. This design allows for continuous operation by seamlessly switching between reels, reducing downtime and increasing productivity. The dual-reel system is particularly beneficial for high-volume cutting tasks.

High-Speed Operation

Designed for efficiency, the CM series machines deliver high-speed cutting performance, significantly increasing throughput. This capability is crucial for industries with large-scale cutting needs, ensuring timely completion of substantial orders without compromising quality.

High-Quality Construction

Constructed from high-quality materials and featuring robust engineering, the CM series machines are built for durability and stability. This solid construction ensures that the machines can handle heavy-duty tasks efficiently and consistently, providing long-term reliable performance.

Four-Shaft Bevel Wheel Structure

The four-shaft bevel wheel structure ensures steady operation, excellent cutting performance, and low noise levels. This design is particularly suited for various industrial environments where precision and reliability are paramount.

Auto Positioning Slitting System

The auto positioning slitting system is an advanced feature of the CM series. This system automatically adjusts the position of the slitting blades, ensuring consistent and accurate cuts every time. This automation reduces setup time and minimizes human error, leading to increased productivity.

Paper Pre-Press Device

The paper pre-press device ensures proper alignment and pressing of materials before cutting. This feature is essential for achieving high-quality cuts and preventing misalignment or errors during the cutting process.

Three Times Delivery Device (No Impression Line)

The three times delivery device eliminates impression lines on the finished product, ensuring a clean and professional appearance. This feature is especially beneficial for applications requiring high aesthetic standards.

Collecting Board Pneumatic Lifting Device

The collecting board pneumatic lifting device enhances ease of operation by allowing smooth and efficient collection of cut sheets. This pneumatic mechanism reduces manual handling, increasing operator comfort and productivity.

Applications in Various Industries

The CM 1100A/1500A/1700A/1900A Servo Precision High Speed Sheet Cutter Machines are suitable for a wide range of industries. Their precision cutting capabilities make them ideal for:

  • Printing: Ensuring high-quality and precise cuts for printed materials.
  • Packaging: Providing accurate and efficient cutting for packaging materials.
  • Paper Products: Handling various types of paper sheets with high precision.
  • Commercial Printing: Enhancing productivity and quality in commercial printing operations.

Technological Advancements

The CM series stands out for its integration of advanced technological features, including servo precision and high-speed operation. These innovations streamline the cutting process, reduce downtime, and significantly increase output, making these machines a valuable asset for modern industrial operations.

Conclusion

The CM 1100A/1500A/1700A/1900A Servo Precision High Speed Sheet Cutter Machines offer an exceptional combination of efficiency, precision, and advanced automation. Their robust construction, intelligent functions, and ease of operation make them an excellent investment for businesses looking to enhance their cutting operations. Whether for printing, packaging, or other paper products, the CM series machines deliver superior performance and reliability, meeting the high demands of today’s industrial environments.



Drawing




Partial Introduction


Paper feeding unit

Electric appliance unit

Overlapping unit

Single sheet outlet can be adjusted by the overlapping unit.
The number of overlapping sheet can be adjusted by the overapping unit.





Machine Parameters

Model

CM-1100A
CM-1500A
CM-1700A
CM-1900A

Model of cutting paper

The up knife cut reciprocally and the down knife is fixed

Thickness of cutting paper

60-550g

Max. scroll diameter

1800mm

Max. paper cutting width

1100mm
1500mm
1700mm
1900mm

Cutting length range

450-1600mm

The format of slitting

2 sheet

Cutting precision

Cutting length≤1000mm: +/-0.5mm, Cutting length>1000mm: +/-0.1%

Max. cutting speed

300cuts/min

Max. cutting meter speed

300m/min

Max. paper piling height

1500mm

The request for air compressor

0.8Mpa

Power consumption

380V/220V×50Hz

Gross weight

9000kgs
11000kgs
13000kgs
15000kgs

Full-load power

22kw
26kw
30kw
35kw

High-precision single knife cutting machine

1SET

Paper prismatic automatic adjustment system

1SET

Paper transporting equipment

1SET

Middle slitting and waste collection system

1SET

Electrical controlling system

1SET

Driving motor system

1SET

Accessory by machine

1SET

Operation system:LCD panel by operator

1SET

Main drive system:AC servo motor

1SET
